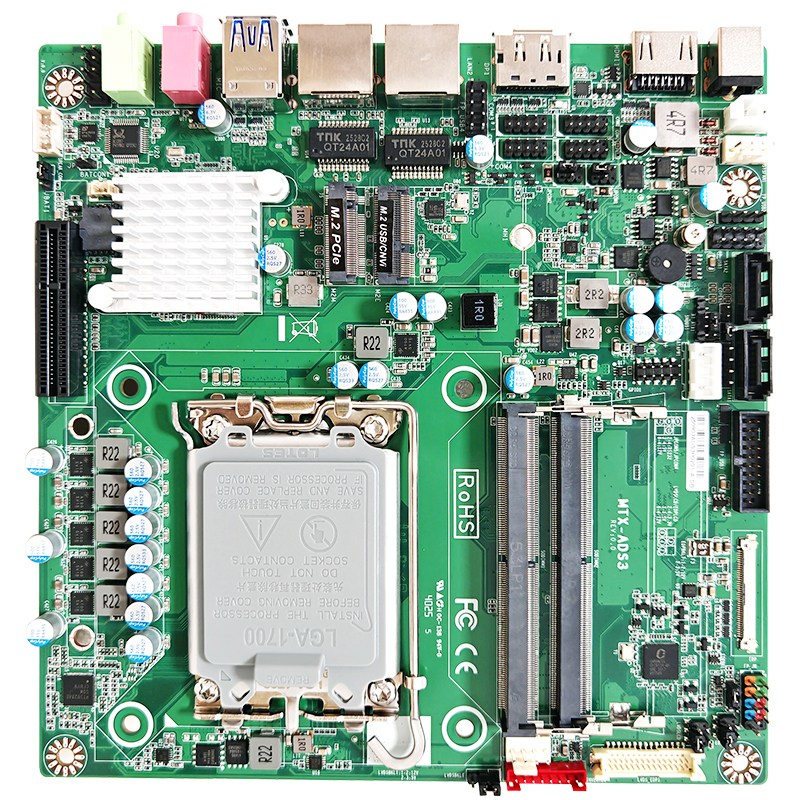

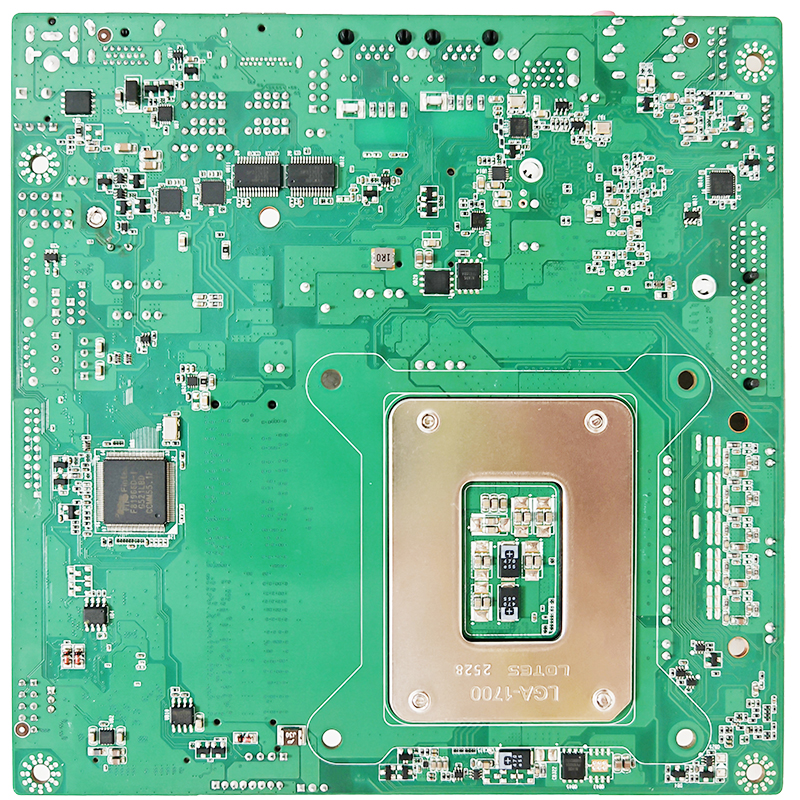

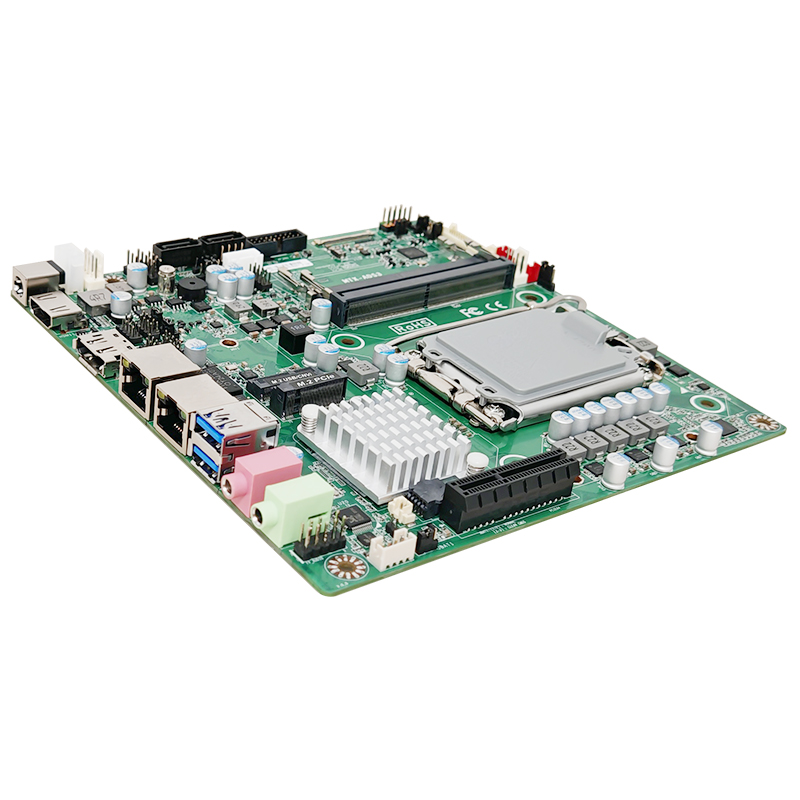

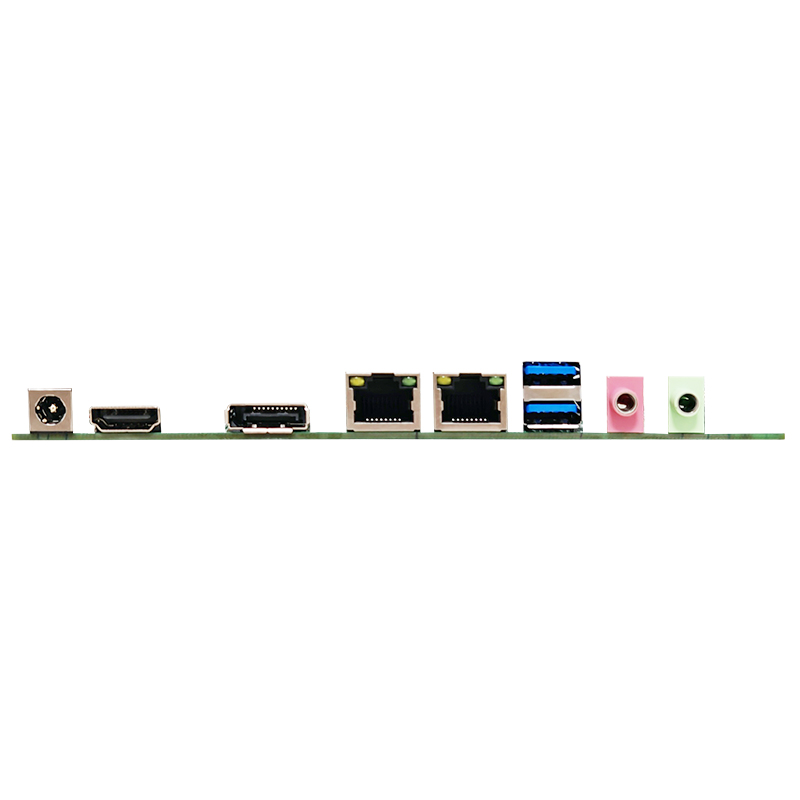

Mini-ITX 1

Name: Mini-ITX 1
Brand: IMPULSE TECHNOLOGY
Price: 15000.0 INR
Availability: InStock

Price 15000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Mini-ITX 1 Specification

Humidity
5% - 90%, non-condensing

Frequency
Depends on installed CPU

Design
Compact, Low Profile

Supply Voltage
12V DC

Installation Guideline
Standard Mini-ITX mounting

Technique
Multi-layer PCB

Output Voltage
Dependent on installed components

Product Type
Industrial Mini-ITX Motherboard

Material
PCB, Metallic Components

Size
Mini-ITX (6.7 x 6.7 in)

Finish
Matte

Part
Motherboard

Usage
Embedded Systems, Industrial Applications

Input Voltage
12V DC

Processing
SMT, Wave Soldering

Application
Automation, POS, Kiosk, Digital Signage

Process
Assembly Line Manufactured

Mounting Type
Chassis Mounted

IP Rating
IP20

Weight
420g

Dimension (L*W*H)
17cm x 17cm x 3cm

Color
Green (PCB)

Equipment Type
Computer Motherboard

Service Period
Up to 5 years

Standard
Mini-ITX Form Factor

CPU Support
Intel i3/i5/i7 2nd-4th Gen (LGA1155/LGA1150)

Brand Name
Generic

Thickness
1.6mm

Temperature
-20C to 60C

Surface Treatment
Lead-Free HASL

RAM
2 x DDR3 SO-DIMM, up to 16GB

Tolerance
Standard Factory Tolerance

Model No
Mini-ITX 1

Storage Interfaces
2 x SATA3.0, 1 x M.2 (NGFF)

Onboard Features
TPM Header, COM Port Header (optional)

Storage Capacity
Up to 4TB+ via SATA/M.2

Audio Ports
Integrated HD Audio (3.5mm Jack)

Maximum RAM Frequency
3200MHz (Supports OC, model specific)

Power Connector
24-pin ATX

LAN
Gigabit Ethernet (RJ45)

Cooling Support
1 x CPU Fan, 1 x System Fan Header

Chipset
Intel H110/B250 or AMD A320 (varies by submodel)

Graphics Support
Integrated with CPU or PCIe GPU

Display Output
HDMI, VGA, DVI (Model Dependent)

Operating System Support
Windows, Linux

BIOS
UEFI AMI BIOS

USB Ports
Up to 4 x USB 3.0, 4 x USB 2.0

Expansion Slots
1 x PCIe x16

Mini-ITX 1 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
8 Week

About Mini-ITX 1

Key Features

Standard Mini-ITX compact design (170mm 170mm)
Support for Intel 12th/13th/14th Gen, Atom, and AMD embedded processors
DDR4 / DDR5 high-speed memory support up to 96GB
Multiple display outputs including HDMI, DP, VGA, LVDS, and eDP
Quad display support for multimedia and industrial applications
Dual Gigabit / 2.5GbE LAN connectivity
PCIe Gen4 expansion support
M.2 slots for NVMe SSD, WiFi, and 4G/5G modules
Rich industrial I/O with USB, COM, GPIO, SATA, and SIM support
Wide voltage DC input and industrial temperature operation
Designed for stable 24/7 industrial use

Common Applications

Industrial Automation
Edge AI Computing
Machine Vision Systems
Digital Signage
Smart Factory Solutions
Medical Equipment
Transportation Systems
Industrial Networking
IoT Gateways
Kiosk and POS Systems
Smart Retail Applications

Popular Models

MI215H6100 Intel H610 Mini-ITX motherboard supporting 12th/13th/14th Gen Intel processors with DDR5 memory and quad display support.
MI225H6100 High-performance Mini-ITX board with Intel Alder Lake support, PCIe Gen4, multiple display outputs, and industrial I/O features.
MTX-MTH1 Intel Core Ultra series industrial Mini-ITX motherboard with triple 2.5GbE LAN and AI-ready performance.
MI23 Series Networking-focused Mini-ITX boards with multiple 2.5GbE LAN ports for firewall and network appliance applications.
