ARM-based industrial Mother bord

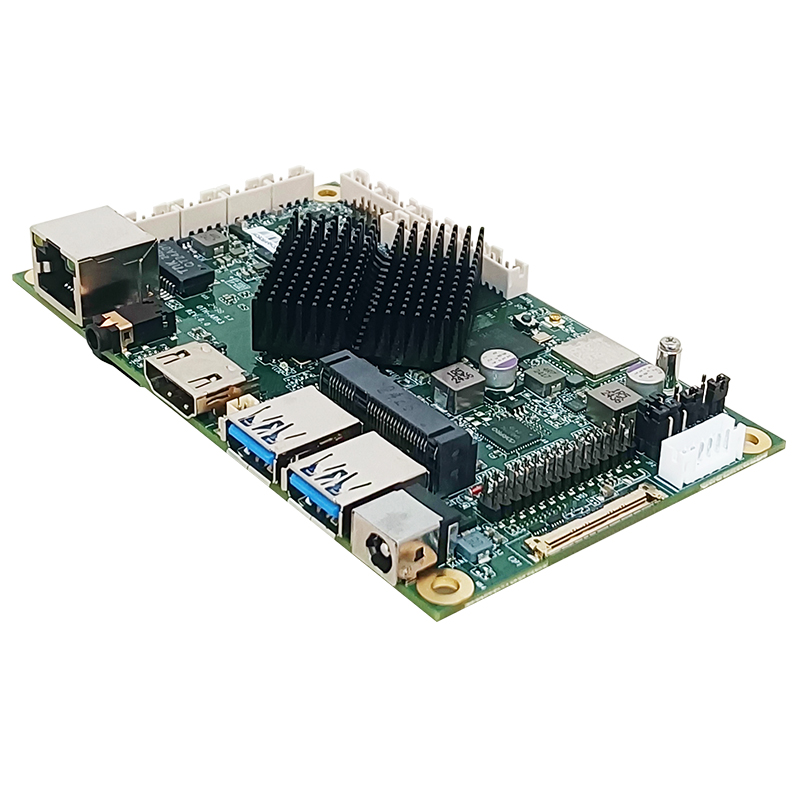

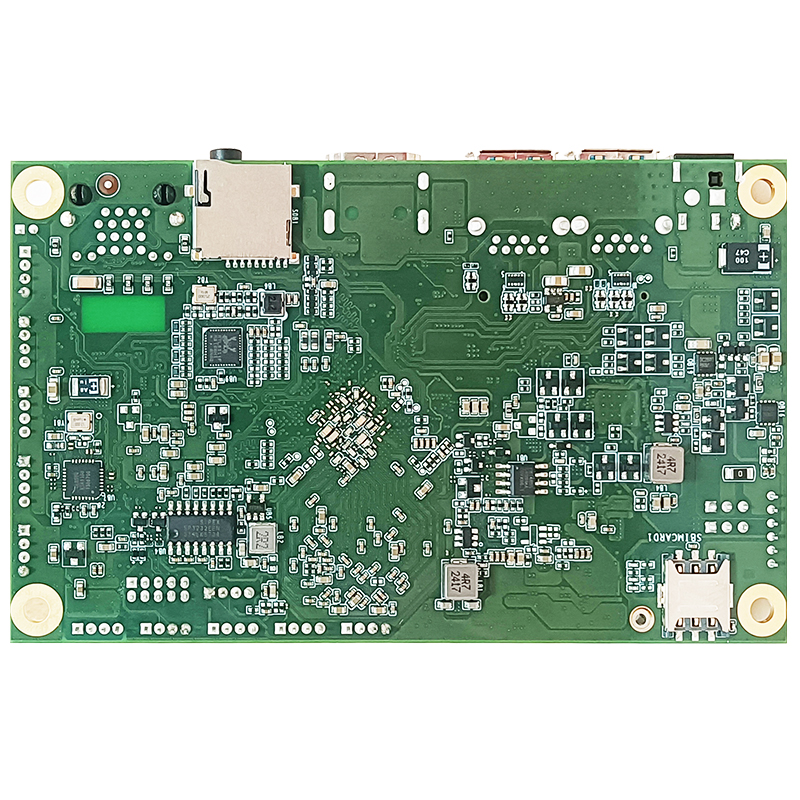

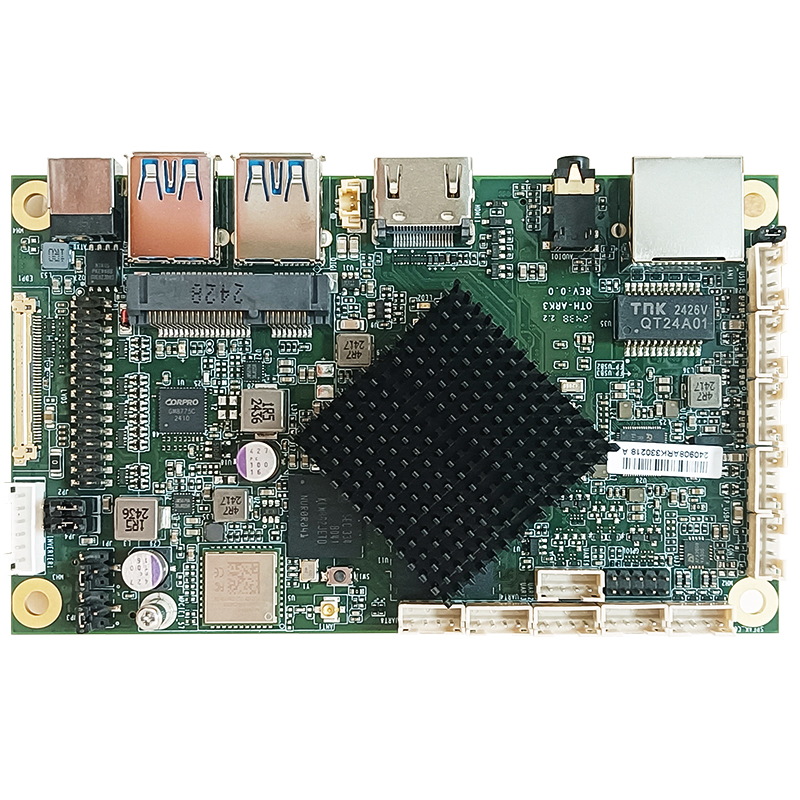

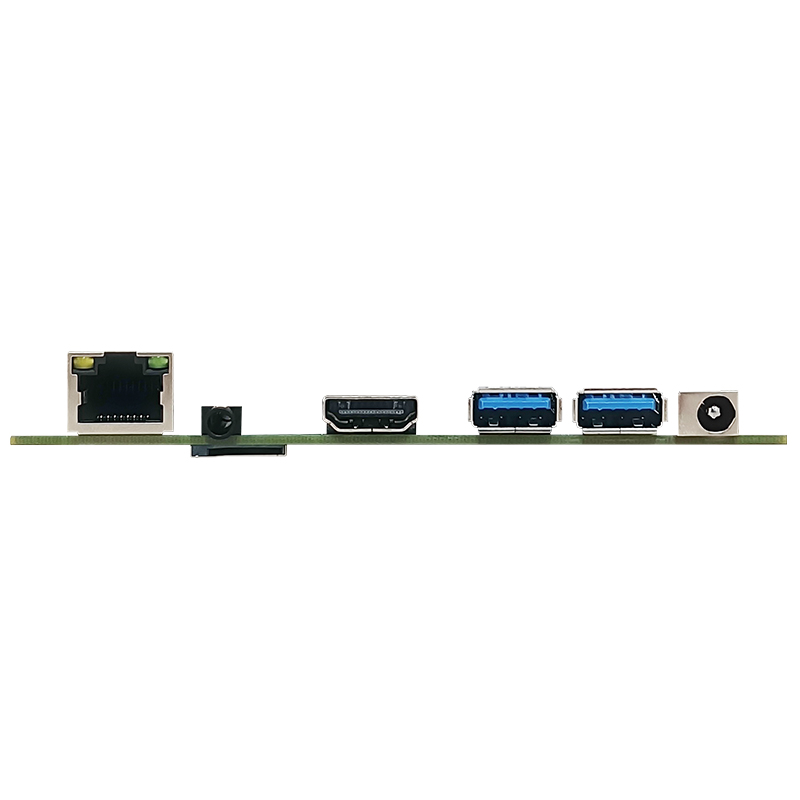

Name: ARM-based industrial Mother bord
Brand: IMPULSE TECHNOLOGY
Price: 15000.0 INR
Availability: InStock

Price 15000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ARM-based industrial Mother bord Specification

Size
170mm x 170mm

Thickness
1.6mm PCB

Design
Compact Embedded Board

Weight
380g

Technique
Surface Mount Technology

Output Voltage
3.3V/5V for I/O ports

Equipment Type
Single Board Computer

Process
RoHS-compliant assembly

Service Period
Up to 8 years

Dimension (L*W*H)
170mm x 170mm x 25mm

Product Type
Industrial Mother Board

Frequency
1.2GHz CPU clock

IP Rating
IP20

Mounting Type
Panel mount or DIN rail mount

Tolerance
0.2mm

Color
Green

RAM
2GB DDR3 onboard

CPU Support
ARM Cortex-A9 Quad-Core 1.2GHz

Finish
Matte solder mask with legend printing

Standard
CE, FCC

Processing
SMT and Through-Hole

Usage
Industrial automation, control systems, embedded applications

Temperature
-20C to +70C

Surface Treatment
Lead-free HASL

Input Voltage
12V DC

Material
High-grade FR4 PCB, electronic components

Application
IoT devices, smart terminals, factory automation controllers

Brand Name
Intech

Part
PCB-ARM2000

Humidity
5%~95% RH (non-condensing)

Installation Guideline
Install on standoffs into enclosure, connect with appropriate power and I/O interfaces as per manual

Supply Voltage
12V DC

Model No
ARM-IMB2000

Ethernet
2 x Gigabit LAN

USB Ports
4 x USB 2.0

Chipset
ARM SoC integrated

Audio
1 x Line-out, 1 x Mic-in

Display Output
1 x HDMI, 1 x LVDS

Serial Ports
2 x RS232, 2 x RS485

GPIO
8-bit programmable

Storage
eMMC 16GB, MicroSD slot support

OS Compatibility
Linux, Android, RTOS

Power Consumption
< 12W

Expansion Slots
1 x Mini PCIe, 1 x mSATA

BIOS/Bootloader
U-Boot, Linux supported

ARM-based industrial Mother bord Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
8 Week

About ARM-based industrial Mother bord

Key Features (Expert Level)

1. Processor Platforms

Rockchip RK3288 (Cortex-A17 quad-core)
Rockchip RK3328 (Cortex-A53 quad-core)
Rockchip RK3399 (Cortex-A72 + A53 high-performance ARM)
Rockchip RK3568 (new generation Cortex-A55)

These CPUs are optimized for:

Multimedia processing
Embedded control systems
IoT edge computing
Low-power industrial applications

2. Memory & Storage

Onboard DDR3 / DDR4 memory (typically 2GB4GB)
eMMC / Flash storage (8GB32GB standard, expandable)
MicroSD card support for flexible storage expansion

3. Display & Graphics

HDMI output (Full HD and 4K support depending on model)
eDP / LVDS / MIPI display interfaces
Multi-display support in RK3399 models
4K video decoding capability (RK3399 / RK3568)

4. Connectivity & I/O

Gigabit Ethernet / Fast Ethernet LAN
USB 2.0 / USB 3.0 ports
RS232 / RS485 serial communication
GPIO for industrial control
WiFi and Bluetooth support (select models)
SIM slot for cellular connectivity (optional)

5. Expansion Options

Mini PCIe slots (WiFi / 4G modules)
M.2 support in advanced boards
MicroSD expansion for storage flexibility

6. Operating System Support

Android (7.1 / 9.0 depending on model)
Debian Linux (industrial embedded use)
Optimized for lightweight embedded software stacks

7. Power & Industrial Design

Low-voltage DC input (5V / 12V typical)
Wide operating temperature (-10C to 60C)
Compact PCB form factors for embedded integration
Designed for fanless and low-maintenance systems

Industrial Applications

Smart kiosks and vending machines
Digital signage and advertising displays
Industrial IoT gateways
Access control systems
Smart home and automation devices
POS (Point of Sale) systems
Industrial HMI and control panels
Vehicle and transport systems
Energy monitoring systems
