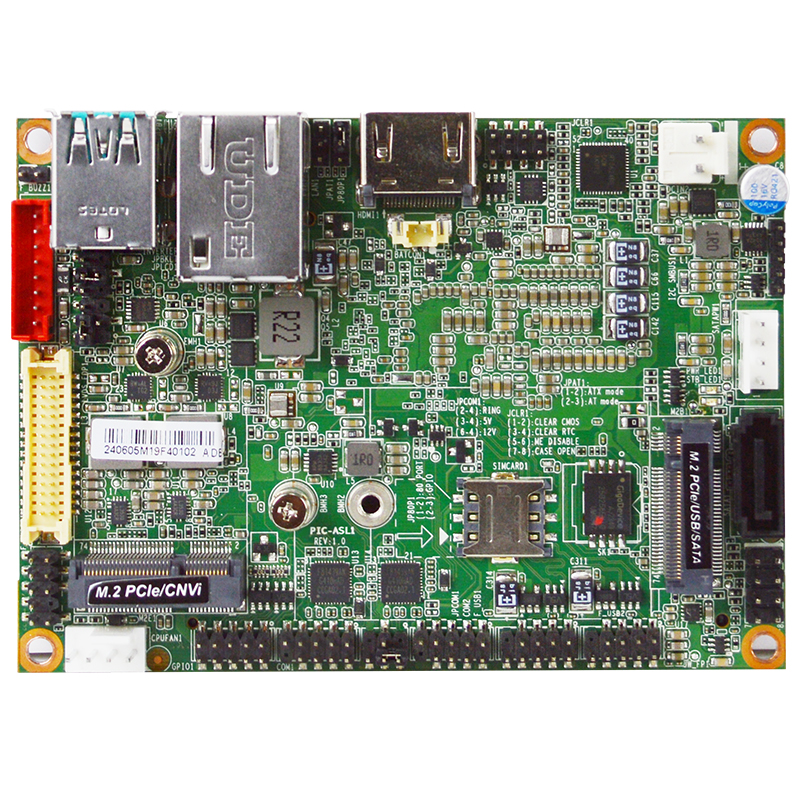

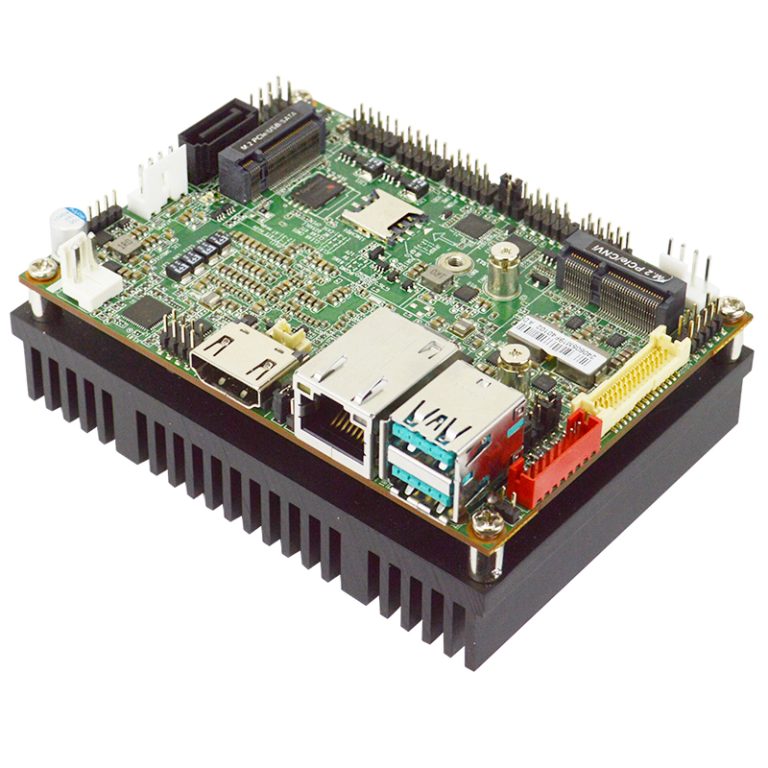

2.5" Pico-ITX motherboard

Name: 2.5" Pico-ITX motherboard
Brand: IMPULSE TECHNOLOGY
Price: 15000.0 INR
Availability: InStock

Price 15000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

2.5" Pico-ITX motherboard Specification

Installation Guideline
Mount with standoffs or into compatible housing, follow ESD precautions

Tolerance
Standard electronic tolerance

Size
2.5 Pico-ITX (100 x 72 mm)

Material
FR4 PCB, electronic components

Design
Low-profile, compact layout

Dimension (L*W*H)
100 mm x 72 mm x 18 mm

Finish
HASL or ENIG

Process
Lead-free, Wave Soldering

Humidity
5% to 90% (non-condensing)

Color
Green PCB

IP Rating
None (depends on enclosure)

Weight
~120g

Product Type
2.5 Pico-ITX Motherboard

Equipment Type
Single Board Embedded Motherboard

Usage
Embedded computing, industrial automation

Standard
Pico-ITX Form Factor

RAM
1 x SO-DIMM DDR3/DDR3L, up to 8GB

Frequency
CPU dependent (up to 2.4 GHz)

Processing
SMT, RoHS compliant

Supply Voltage
+12V DC

Surface Treatment
Anti-corrosive, lead-free coating

Part
Single Board Computer

Technique
Surface Mount Technology (SMT)

Temperature
-20C to 70C (operating), -40C to 85C (storage)

CPU Support
Intel AtomTM/Celeron/Pentium processors, onboard SoC

Brand Name
Generic/Customizable

Thickness
1.6 mm PCB

Input Voltage
+12V DC

Service Period
24/7 operation capability

Mounting Type
Panel or Chassis Mount

Output Voltage
Standard I/O, dependent on peripheral

Application
KIOSK, Digital Signage, IoT, Edge Computing

Model No
PITX-2512

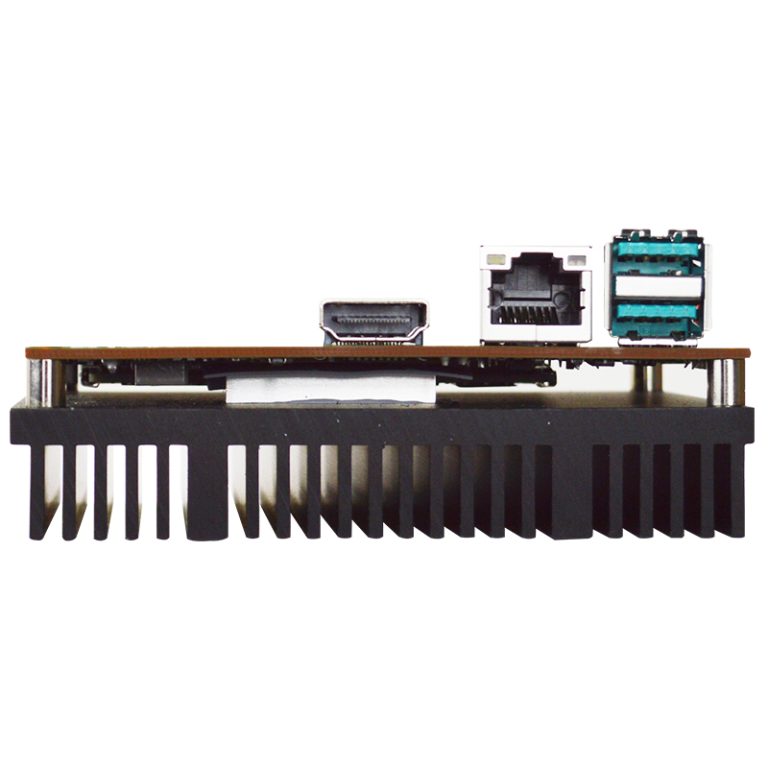

Cooling
Passive/Heatsink support

Power Consumption
Low Power, <10W (typical)

Audio
1 x Line-out, 1 x MIC-in

BIOS
AMI UEFI BIOS

USB Ports
2 x USB 2.0, 1 x USB 3.0

System Compatibility
Supports Windows, Linux

LAN
1 x Gigabit Ethernet (RJ-45)

Storage Interfaces
1 x SATA 3.0, 1 x mSATA slot

Serial Ports
2 x RS-232

Display Support
1 x HDMI, 1 x LVDS

GPIO
8-bit programmable GPIO

Watchdog Timer
Supported

Expansion
1 x Mini PCIe, 1 x SIM card slot

2.5" Pico-ITX motherboard Trade Information

Minimum Order Quantity
1 Number

Delivery Time
7 Week

About 2.5" Pico-ITX motherboard

Feature Category	Technical Highlights
Form Factor	Pico-ITX (100 72 mm) ultra-compact SBC
Processor Platforms	Intel Atom, Intel N-series, Elkhart Lake, Gemini Lake, Apollo Lake
Architecture	x86 Embedded Industrial Computing
Memory Support	DDR4 / DDR5 SO-DIMM up to 32GB
Storage	SATA III, onboard eMMC options, NVMe support
Expansion	M.2 E-Key, M.2 B/M-Key, Mini-PCIe
Networking	1GbE LAN, optional dual LAN
Display Support	HDMI, eDP, LVDS, dual-display capability
Industrial I/O	RS-232/422/485 COM ports, GPIO, USB 3.x
Power Input	12V DC industrial input
Temperature Range	Typically -20C to +60C
Security	Intel fTPM / Intel PTT support
Deployment	Fanless embedded systems
