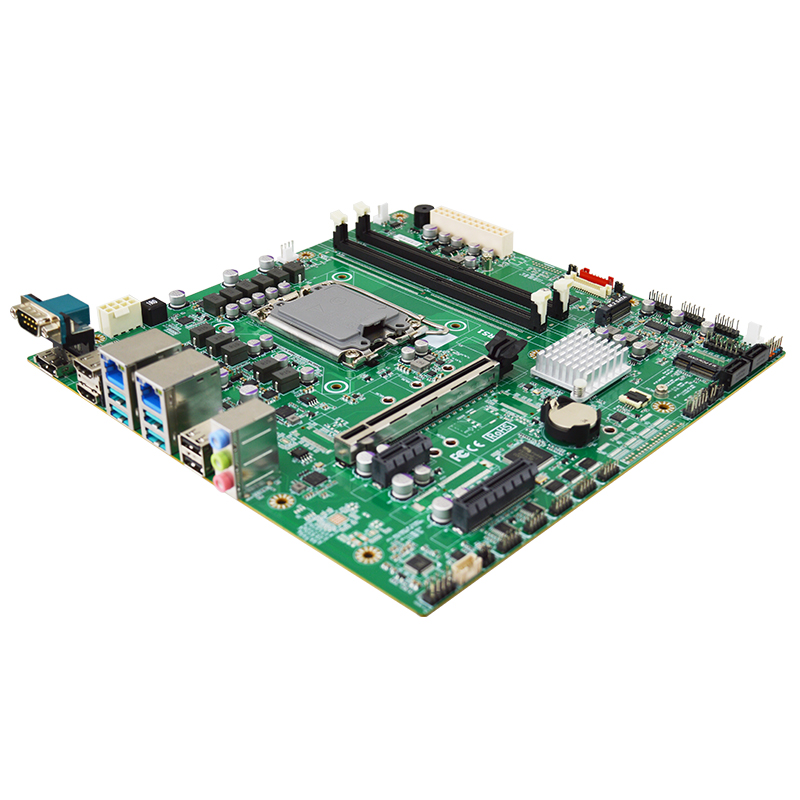

Micro ATX

Name: Micro ATX
Brand: IMPULSE TECHNOLOGY
Price: 15000.0 INR
Availability: InStock

Price 15000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Micro ATX Specification

Installation Guideline
Standard ATX case installation

Processing
Multi-layer PCB manufacturing

Finish
Solder mask, silkscreen

Product Type
Desktop Motherboard

Brand Name
Custom/OEM

Tolerance
+/- 0.2mm

CPU Support
Intel/AMD compatible

Design
Compact, space-saving

Material
High-grade PCB

Part
Motherboard

Output Voltage
Dependent on connected devices

Temperature
Operating: 0C~60C

Technique
SMT, through-hole assembly

Standard
Micro ATX

Supply Voltage
12V, 5V, 3.3V

RAM
4 x DDR4 DIMM slots, up to 64GB

Usage
PC Building, Workstation, Gaming

Humidity
5%~95% RH non-condensing

Process
Wave soldering, SMT

Size
Micro ATX

Application
Computer hardware integration

Weight
Approx. 0.65 kg

Frequency
Up to 3200MHz RAM support

Dimension (L*W*H)
244mm x 244mm x 30mm

Thickness
1.6mm

Color
Green/Black

Mounting Type
Screw-mounted

Surface Treatment
Lead-free HAL

Input Voltage
ATX PSU standard (110V-240V input)

Equipment Type
Motherboard

Service Period
1 Year

Model No
Micro ATX

Audio Codec
7.1 channel HD Audio

Graphics Support
Integrated & PCI-E x16

Expansion Slots
1 x PCI Express x16, 2 x PCI Express x1

Chipset
H61 Express / Compatible

USB Ports
4 x USB 2.0, 2 x USB 3.0

Form Factor
Micro ATX 24.4cm x 22.9cm

RoHS Compliance
Yes

BIOS
UEFI BIOS

ESD Protection
Yes

Maximum RAM Capacity
16GB

Cooling Support
1 x CPU fan header, 2 x system fan headers

Storage Interface
SATA II / III Ports

Package Contents
Motherboard, I/O shield, SATA cables, Manual

LAN
1 x RJ-45 Ethernet (10/100/1000Mbps)

Micro ATX Trade Information

Minimum Order Quantity
1 Number

Delivery Time
8 Week

About Micro ATX

Key Features

Standard Micro ATX form factor (244mm 244mm)
Support for Intel 10th/12th/13th/14th Gen desktop processors
DDR4 / DDR5 high-speed memory support up to 192GB
Multiple display outputs including HDMI, DP, VGA, DVI, LVDS
Triple and quad display support
Multiple PCIe and PCI expansion slots for GPU, AI, frame grabber, and industrial cards
High-speed networking with dual GbE and 2.5GbE LAN
Rich industrial I/O including COM, USB, GPIO, SATA, RAID, and M.2
TPM security support for industrial protection
Wide operating temperature support
Designed for reliable 24/7 industrial operation

Common Applications

Industrial Automation
Smart Manufacturing
AI Edge Computing
Machine Vision Systems
HMI and Control Stations
Industrial Servers
Medical Equipment
Digital Signage
Transportation Systems
Industrial Networking
Data Capture and Analysis

Popular Models

MM10-Q6700 High-performance industrial Micro ATX motherboard supporting Intel 12th/13th/14th Gen processors, DDR5 memory, PCIe Gen5 expansion, and multi-display support.
MM10-H6100 Industrial motherboard with Intel H610 chipset, DDR5 support, rich USB and COM connectivity, and triple display support.
MM21-Q4700 Intel 10th/11th Gen industrial Micro ATX platform with RAID storage, quad LAN, and multiple PCIe slots.
LM26 Industrial Micro ATX motherboard with multiple M.2 expansion slots, 10 COM ports, and industrial automation-focused I/O design
