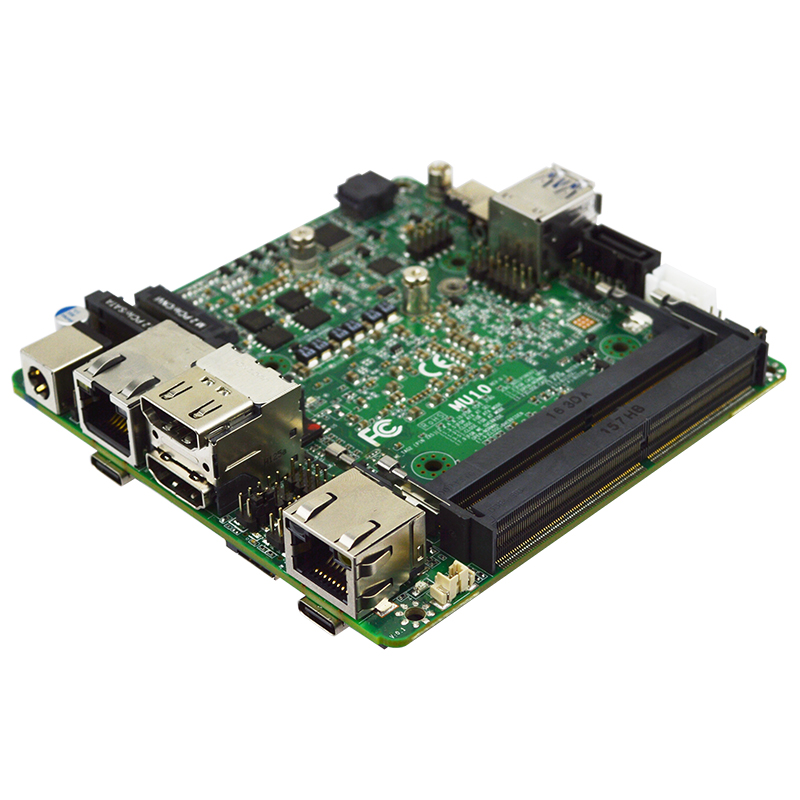

NUC Board

Name: NUC Board
Brand: IMPULSE TECHNOLOGY
Price: 15000.0 INR
Availability: InStock

Price 15000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Number

NUC Board Specification

Dimension (L*W*H)
102 mm x 102 mm x 35 mm

Input Voltage
100-240V AC via external power adapter

Product Type
Single Board Computer

Brand Name
NUC

Size
4 x 4 inches (Approximate; actual may vary per variant)

RAM
Supports DDR4 SODIMM, up to 32GB

Standard
Intel NUC Reference Standard

Tolerance
Precision engineered to 0.1mm

Frequency
Depends on installed CPU (Base 2.1GHz to 4.7GHz Turbo)

Material
PCB, High-Grade Electronic Components

Humidity
10%-80% RH, non-condensing

Installation Guideline
Refer to the official manual. Mount in suitable enclosure. Install compatible CPU, RAM, and storage. Connect standard 19V DC power supply.

Color
Green

Usage
Embedded Computing, Mini PC, Custom PC build, Digital Signage, IoT

Application
Industrial, Office, Home Computing, Media Center

Weight
Approx 450g (board only)

Equipment Type
Mini PC Board

CPU Support
Intel Core i3/i5/i7 (8th/10th Gen and above, socketed/onboard variants supported)

IP Rating
N/A (Indoors use recommended)

Service Period
Serviceable during warranty period

Mounting Type
VESA Mount, Chassis Mount

Temperature
Operating: 0C to 40C

Process
Surface Mount Technology (SMT)

Design
Compact, Low profile design

Finish
Matt Solder Mask with Silk Screen Labels

Thickness
1.6mm PCB (may vary per variant)

Supply Voltage
19V DC Input (via jack or header)

Processing
Multi-Core Processing support

Output Voltage
3.3V, 5V, 12V rails for peripherals

Part
Motherboard

Surface Treatment
Lead-Free HASL / ENIG

Technique
Wave Soldering / SMT

Model No
NUC Board

Display Outputs
HDMI 2.0, Mini DisplayPort 1.2

System Management
Wake-on-LAN, PXE Boot

Power Connector
DC-in Jack (12-19V)

Expansion Slots
M.2 (SSD & WiFi/Ethernet)

Storage
M.2 2280 Key M, SATA 6Gbps

Graphics Support
Integrated Intel UHD Graphics

Cooling Solution
Active/Passive support (fan header present)

USB Ports
4 x USB 3.0, 2 x USB 2.0

Operating System Support
Windows 10/11, Linux compatible

Audio
3.5mm combo jack (Mic/Line-out)

Fan Header
1 x 4-pin

BIOS
UEFI BIOS

Networking
Gigabit Ethernet LAN

NUC Board Trade Information

Minimum Order Quantity
1 Number

Delivery Time
8 Week

About NUC Board

Key Features

Ultra-compact NUC form factor design
Support for Intel Core, Atom, Alder Lake-N, Tiger Lake, Apollo Lake, and Elkhart Lake processors
DDR4 / DDR5 high-speed memory support
Multiple display outputs including HDMI, DP, and USB Type-C DP
Dual Gigabit / 2.5GbE LAN support
M.2 expansion for NVMe SSD, WiFi, and 4G/5G modules
USB 3.2, Type-C, COM, SATA, and GPIO connectivity
Fanless and low-power embedded computing options
TPM security and industrial temperature support
Reliable 24/7 industrial operation

Common Applications

Industrial Automation
Digital Signage
Smart Factory Systems
Edge AI Computing
IoT Gateways
Kiosk Machines
Medical Equipment
Transportation Systems
Smart Retail Solutions
Cloud and Network Applications
Popular Models
- JNUC-ADN1 Intel N97 Alder Lake-N based industrial NUC board
- MU10 Intel 11th Gen Tiger Lake high-performance NUC motherboard
- MU03 Intel Elkhart Lake compact embedded board
- MU11 Intel Gemini Lake-R low-power NUC motherboard
- MU02 Intel Apollo Lake embedded industrial board
