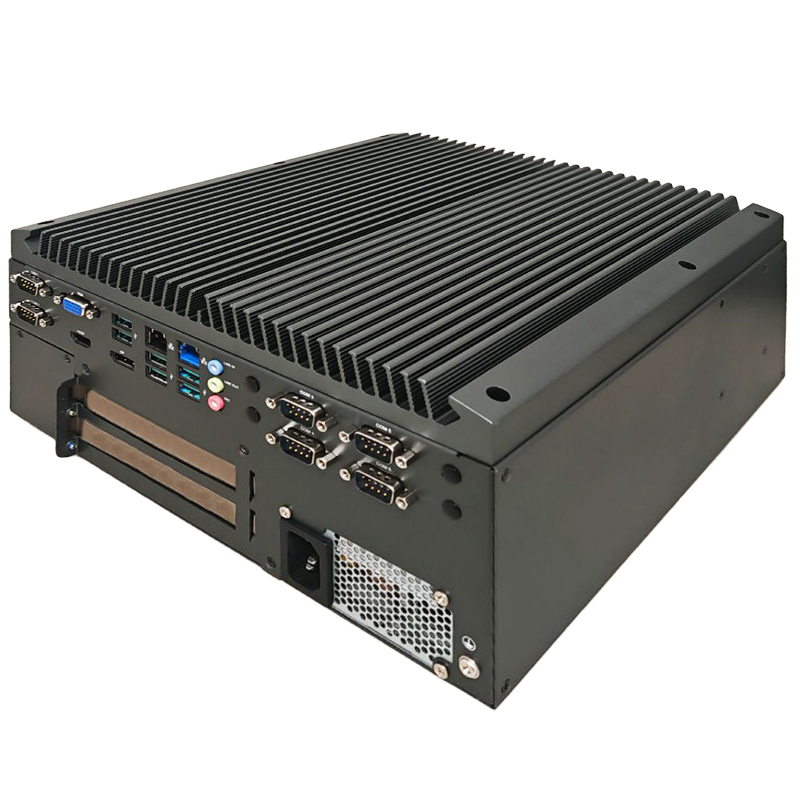

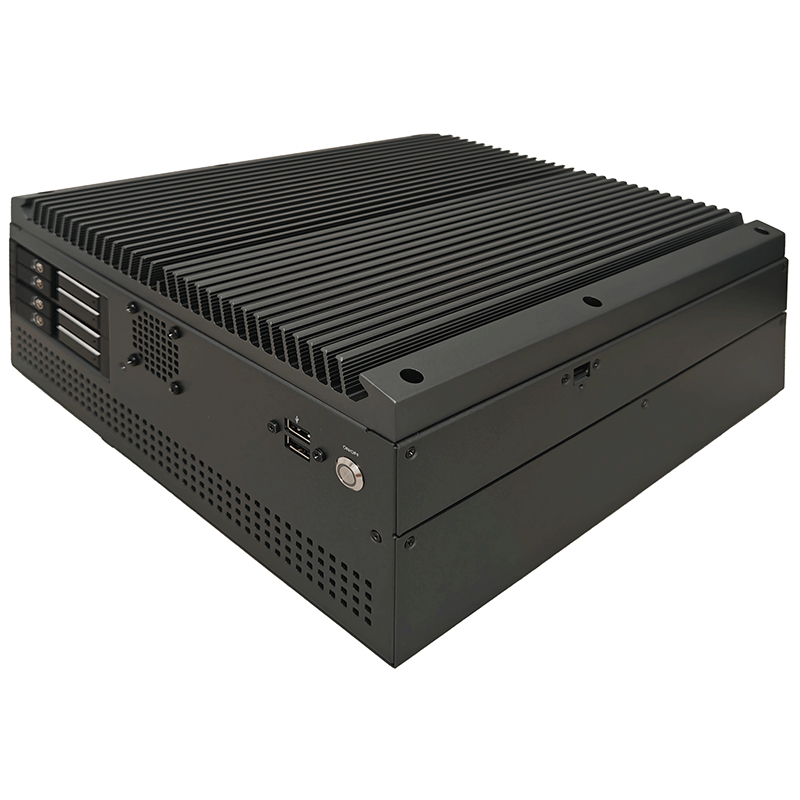

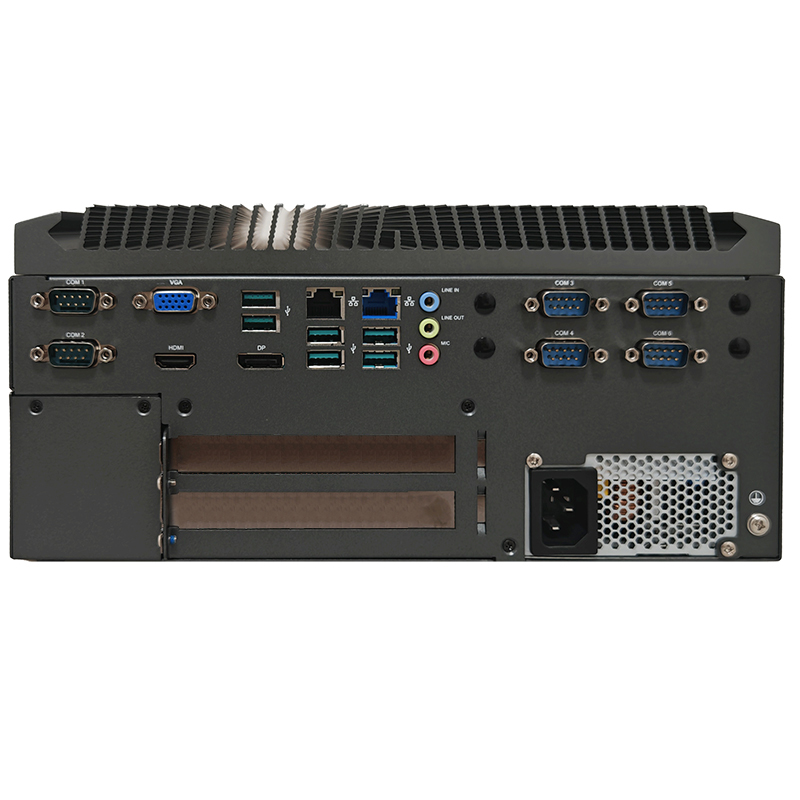

A.I. Platfrom industrial computing

Name: A.I. Platfrom industrial computing
Brand: IMPULSE TECHNOLOGY
Price: 20000.0 INR
Availability: InStock

Price 20000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Number

A.I. Platfrom industrial computing Specification

Application
Smart factory, IoT, robotics, machine vision, automation

Processing
Real-time data processing, GPU-accelerated computation

Tolerance
Industrial grade, wide temperature tolerance

Temperature
-20C to 70C

Brand Name
A.I. Platform

Material
Aluminum Alloy and Steel

Usage
AI computation, Edge analytics, Industrial automation

Weight
3.2 kg

Installation Guideline
Panel, Rack, VESA, or Wall-mount support

Part
AI-IPC3000

Service Period
Long-life service components

Frequency
50/60 Hz

Dimension (L*W*H)
265mm x 235mm x 95mm

Process
Multi-threaded parallel processing

Design
Fanless rugged design

Thickness
2.5mm (chassis)

Surface Treatment
Hard anodized/antioxidant coated

Humidity
10%~90% (non-condensing)

Standard
CE, FCC, RoHS compliant

IP Rating
IP40

Supply Voltage
12-24 V DC

Mounting Type
DIN rail, Panel, Wall, and VESA mount

RAM
Up to 64GB DDR4 ECC/non-ECC

CPU Support
Intel Core i7/i5/i3, Xeon, AMD Ryzen Embedded

Technique
CNC machining, advanced assembly

Product Type
Industrial Computing Platform

Output Voltage
5 V/12 V AUX (for peripherals)

Input Voltage
9-36 V DC wide range

Finish
Anodized, powder-coated

Color
Black/Silver

Size
Standard Mini-ITX

Equipment Type
Embedded Industrial AI Platform

Model No
A.I. Platform Industrial 3000

Power Consumption
< 50W full load

Cooling
Passive Fanless

Operating System Support
Windows 10/11, Linux Ubuntu/CentOS

USB Ports
6 x USB3.0, 2 x USB2.0

Serial Ports
4 x RS232/422/485

Watchdog Timer
255-level programmable timer

Audio Support
1 x Line-Out, 1 x Mic-In

Remote Management
Supported via IPMI

Storage Support
2 x SATA III, 1 x mSATA, 1 x M.2 (NVMe)

Shock Resistance
50G, 11ms, IEC60068-2-27

LAN Ports
4 x Intel Gigabit LAN

Graphics
Integrated Intel UHD Graphics

Vibration Resistance
5Grms, 5-500Hz, IEC60068-2-64

Expansion Slots
1 x PCIe x16, 2 x mini PCIe, 1 x SIM Card Slot

A.I. Platfrom industrial computing Trade Information

Minimum Order Quantity
1 Number

Delivery Time
8 Week

About A.I. Platfrom industrial computing

Key Features

High-performance Edge AI computing platforms
Support for Intel Core, Core Ultra, Atom, and embedded processors
Integrated Hailo-8 AI acceleration up to 104 TOPS
Real-time AI inference and machine learning processing
Fanless rugged industrial embedded system design
DDR4 / DDR5 high-speed memory support up to 128GB
Multiple display outputs with HDMI and DisplayPort support
Multi-display 4K visualization capability
High-speed networking with dual 2.5GbE LAN support
M.2 and PCIe expansion for AI accelerator modules and NVMe storage
Rich industrial I/O including USB, COM, GPIO, Audio, and SIM support
Wide voltage DC input support for industrial environments
Wide operating temperature support for harsh conditions
Designed for reliable 24/7 industrial operation

Common Applications

AI Edge Computing
Machine Vision Systems
Smart Manufacturing
Industrial Automation
Robotics and AGV Systems
Predictive Maintenance
Intelligent Surveillance
Smart Transportation
IoT Gateway Systems
Medical AI Applications
Data Analytics and Real-Time Processing

Popular AI Platform Models

HB652I3H High-performance Edge AI system supporting Intel 13th Gen processors, DDR5 memory up to 64GB, dual 2.5GbE LAN, and Hailo-8 AI acceleration up to 104 TOPS.
HB368F21-6412-AI Compact fanless Edge AI platform powered by Intel J6412 processor with integrated Hailo-8 AI accelerator delivering 26 TOPS for industrial AI applications.
HB190MA3H-R680 Industrial AI Edge Server with Intel R680E chipset, DDR5 memory up to 128GB, hot-swap storage, and AI PCIe module support up to 104 TOPS.
B382FMTU1 Fanless embedded AI Box PC powered by Intel Core Ultra processors with integrated Intel AI Boost NPU for intelligent edge applications and low-latency AI processing.
