Send Inquiry15-17" industrial Panel PC
Price 40000.0 INR/ Unit
MOQ : 1 Number
15-17" industrial Panel PC Specification
- Weight
- Approx. 5.2 kg
- Thickness
- Front Bezel: 6 mm
- Temperature
- -10C to 60C (Operating)
- RAM
- Up to 16GB DDR4
- Brand Name
- OEM / Ind PanelPC
- Processing
- CNC Machined Frame
- Service Period
- 10,000 hrs (MTBF)
- Standard
- CE, FCC, RoHS
- Dimension (L*W*H)
- 410 x 340 x 58 mm (17 panel)
- Product Type
- Panel Computer
- Application
- Factory Automation, Machine Control, HMI
- Material
- Aluminum alloy front bezel, Metal chassis
- Process
- Precision Assembly
- Design
- Fanless
- Equipment Type
- Touch Panel PC
- Supply Voltage
- 12V DC (optional 9~36V DC)
- Usage
- Industrial Automation, Control
- IP Rating
- IP65 (front panel)
- CPU Support
- Intel Core i5/i7, Celeron, Atom
- Size
- 15-17 Inch
- Input Voltage
- 12V DC
- Technique
- Sealed with Silicone Gasket
- Color
- Black / Silver
- Part
- Industrial Panel PC
- Frequency
- 50/60 Hz
- Finish
- Matt/Anti-glare
- Humidity
- 10%~90% RH (non-condensing)
- Mounting Type
- Panel Mount/VESA 100x100 mm
- Output Voltage
- 12V DC
- Installation Guideline
- Panel Mount / VESA Mount
- Tolerance
- 0.5 mm
- Surface Treatment
- Powder Coated
- Model No
- IPC-1517PX
- Front Panel Glass
- 3mm thickness, anti-reflective
- Expansion Slots
- 1 x Mini PCIe for WiFi/4G/Bluetooth
- EMC Compliance
- CE, FCC Class A

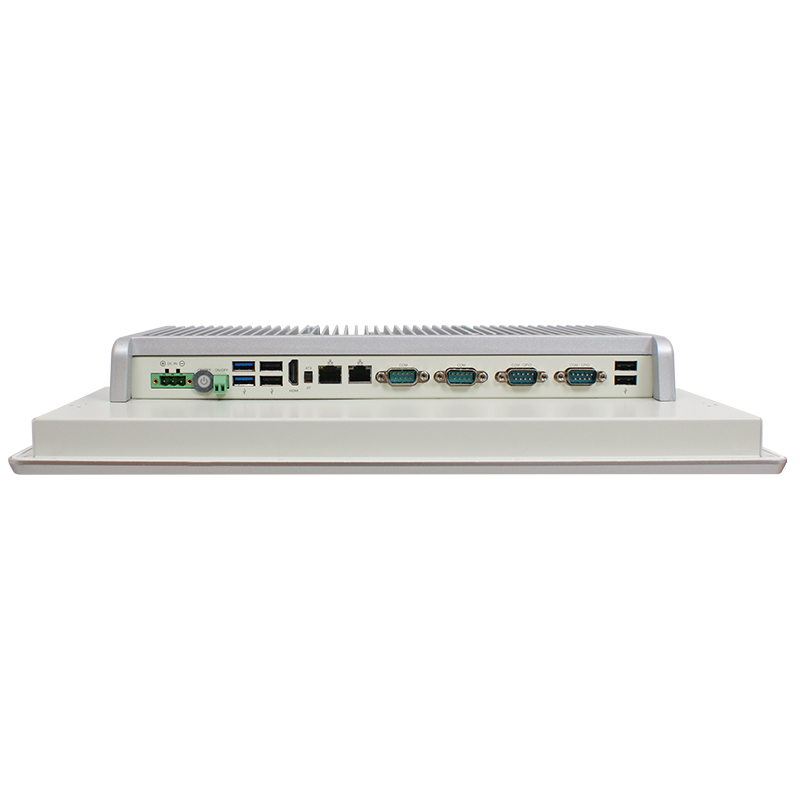

- I/O Ports
- 2 x LAN, 4 x USB 3.0, 2 x COM, 1 x HDMI, Audio Line-out, 1 x VGA
- Touch Screen
- 5-wire resistive or projected capacitive (multi-touch) option
- Power Consumption
- 18W typical
- OSD Controls
- Auto-dimming, contrast, and brightness adjustment
- Storage
- 1 x 2.5" SATA SSD/HDD, 1 x mSATA
- Cooling Method
- Fanless, aluminum heat sink
- Brightness
- 350-400 cd/m2
- Chassis Color Option
- Black, Silver
- Audio
- Integrated stereo speaker
- Viewing Angle
- 170(H)/160(V) typ.
- Operating System Support
- Windows 10/11, Linux Ubuntu supported
- Display Resolution
- 15 inch: 1024 x 768, 17 inch: 1280 x 1024
- Backlight Lifetime
- 50,000 hours min.
15-17" industrial Panel PC Trade Information
- Minimum Order Quantity
- 1 Number
- Delivery Time
- 8 Week
About 15-17" industrial Panel PC
Key Technical Features
1. Display System
- 15.0 / 15.6 / 17.0 industrial TFT LCD
- Resolution up to 1024 768 (15) and 1280 1024 (17)
- 250350 nits brightness industrial display
- 10-point projected capacitive touch (PCAP) or resistive touch options
- Wide viewing angle for factory floor usage
Example: 17 models with 12801024 resolution and high brightness industrial display are standard in this series.
2. Processor Platforms
- Intel Celeron J6412 (Elkhart Lake) widely used
- Intel Core i5/i7 (11th Gen Tiger Lake in higher-end models)
- Older Bay Trail / J1900 platforms in legacy systems
Example: Intel J6412 and i5-1135G7 processors are used for industrial panel performance and efficiency.
3. Memory & Storage
- DDR4 SO-DIMM support up to 32GB or 64GB (model dependent)
- M.2 NVMe SSD support
- SATA / 2.5 HDD/SSD expansion options
- Industrial-grade storage reliability for continuous operation
4. Industrial Connectivity
- Dual Gigabit LAN / 2.5GbE LAN (newer models)
- Multiple USB 3.2 / USB 2.0 ports
- 2 to 6 COM ports (RS232/RS485 for PLC integration)
- HDMI output for external display support
- GPIO and SIM slot (in selected models)
5. Power Design
- Wide DC input: typically 12V 36V
- Industrial protection (EOS / OVP safety design)
- Stable operation under voltage fluctuation conditions
6. Mechanical Design
- Fanless aluminum die-cast chassis
- Front panel IP65 protection (dust and water resistance)
- VESA, wall mount, and panel mount installation support
- Cable-less internal design for reliability
7. Environmental Capability
- Operating temperature: typically -10C to 60C
- Designed for 24/7 industrial continuous operation
- Vibration-resistant and factory-grade durability
Applications
- Factory automation systems
- SCADA and process control systems
- CNC and heavy machinery control
- Smart manufacturing dashboards
- Energy and utility monitoring systems
- Industrial kiosks and operator stations
- Transportation and logistics control systems
