10-13" industrial Panel

About 10-13" industrial Panel

Key Technical Features

1. Display System

• 10.1 / 10.4 / 13.3 industrial LCD options
• WXGA resolution (commonly 1024 600 / 1280 800)
• Projected capacitive multi-touch (PCAP) support
• High brightness industrial-grade panels for factory visibility

Example models include 10.1 and 10.4 J6412-based systems with multi-touch support and rugged display design.

2. Processor Platforms

• Intel Celeron J6412 (Elkhart Lake) widely used
• Intel Atom / Apollo Lake legacy options
• Some models support Intel Core i3/i5 (higher-end variants)

These CPUs are optimized for:

• Low power consumption
• Fanless industrial operation
• Stable 24/7 performance

3. Memory & Storage

• DDR4 SO-DIMM support up to 32GB
• M.2 NVMe SSD support for fast storage
• Optional SATA / mSATA on legacy models

4. Industrial Networking

• Dual Intel 2.5GbE LAN (common in newer models)
• Gigabit LAN options in legacy systems
• Stable industrial Ethernet communication for PLC systems

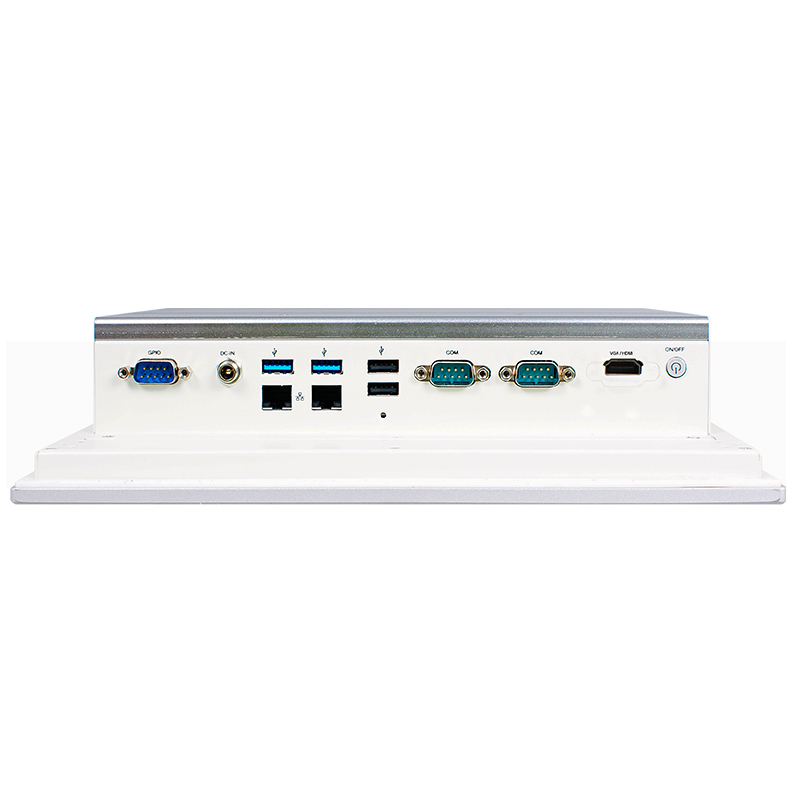

5. Industrial I/O Interfaces

• USB 3.2 / USB 2.0 ports
• RS232 / RS485 COM ports for machine communication
• HDMI output for second display support
• GPIO support in selected models
• M.2 expansion slots for WiFi / 4G / 5G modules

6. Power Design

• Wide DC input: typically 12V 28V or 12V 36V
• Industrial-grade power protection (EOS / OVP)
• Lockable power connector for vibration resistance

7. Mechanical & Build Quality

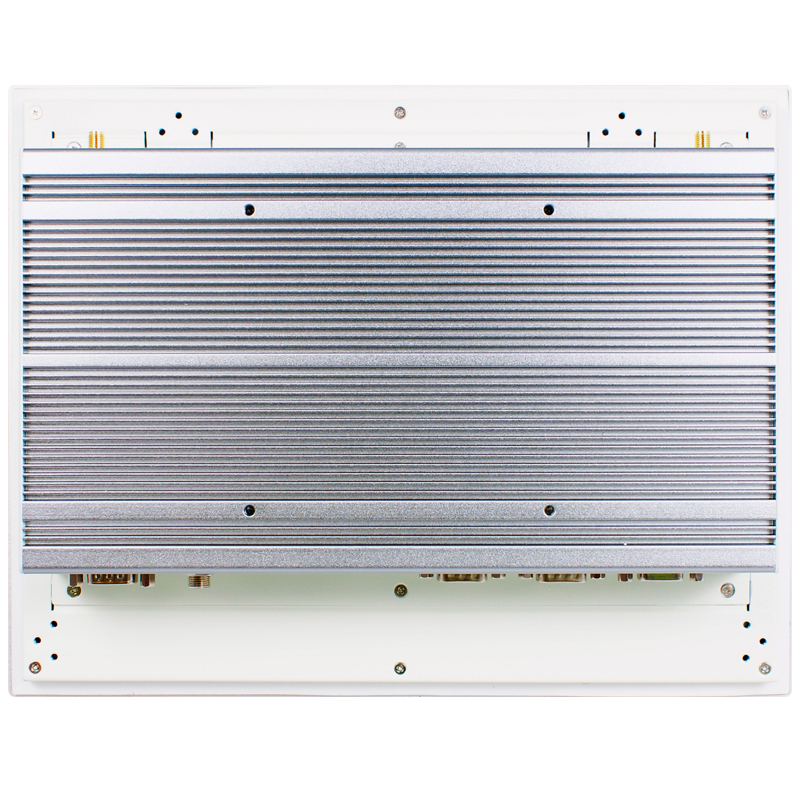

• Fanless aluminum or die-cast chassis
• Dust-resistant and vibration-proof structure
• Designed for control cabinet and panel mounting
• Supports VESA, wall mount, and panel mount installation

8. Environmental Capability

• Operating temperature typically -10C to 60C
• Designed for continuous 24/7 industrial usage
• Suitable for harsh factory environments

Applications (Industrial Use Cases)

• Factory automation and production lines
• PLC and machine HMI control systems
• Packaging and CNC machines
• Energy monitoring and utility systems
• Industrial kiosks and terminals
• Smart manufacturing dashboards
• Process control systems
