Price 20000.0 INR/ Piece

MOQ : 1 Number

Compact industrial computing systems Specification

  • Size
  • Ultra-compact
  • Brand Name
  • CompactSys
  • Service Period
  • 24 Months after purchase
  • Equipment Type
  • Fanless Industrial PC
  • Standard
  • IEC 61000-6-2/4, CE, RoHS
  • Technique
  • Extruded & Precision Ground
  • Thickness
  • 2.5 mm Case
  • Output Voltage
  • Depends on CPU configuration
  • Mounting Type
  • Wall/DIN Rail/VESA
  • Tolerance
  • +/- 0.2mm
  • Usage
  • Automated machinery, monitoring, factory control
  • Humidity
  • 10% to 90% RH, non-condensing
  • Installation Guideline
  • DIN-rail, wall, or VESA Mountable
  • Color
  • Industrial Black
  • IP Rating
  • IP40
  • Application
  • Industrial and commercial automation environments
  • Weight
  • Approximately 1.2 kg
  • RAM
  • Up to 32GB DDR4
  • Frequency
  • 50-60Hz
  • Part
  • Industrial-Embedded-PC
  • Temperature
  • -20C to +60C
  • Design
  • Rugged, Compact, Vibration-resistant
  • Dimension (L*W*H)
  • 194 x 132 x 46 mm
  • Material
  • High-grade Aluminum Alloy
  • Finish
  • Anodized
  • Surface Treatment
  • Anti-Corrosive Coating
  • Supply Voltage
  • 12-24V DC
  • Product Type
  • Compact Industrial Computer
  • CPU Support
  • Intel Core i7/i5/i3, Celeron, Pentium, or Atom processors
  • Processing
  • CNC Machined
  • Process
  • Fanless, Dustproof
  • Input Voltage
  • 12V/24V DC
  • Model No
  • CICS-1200
  • Audio
  • Line-Out, Mic-In (3.5mm)
  • Cooling
  • Passive, Fanless Design
  • Display Output
  • 2x HDMI, 1x DisplayPort
  • OS Support
  • Windows 10/11, Linux Ubuntu/CentOS
  • Ethernet
  • 2x Gigabit LAN (Intel I211)
  • USB Ports
  • 4x USB 3.1, 2x USB 2.0
  • Operating Altitude
  • Up to 3000m
  • Serial Ports
  • 2x RS232/422/485 (BIOS configurable)
  • Power Protection
  • Overvoltage, Surge, ESD
  • Mean Time Between Failures (MTBF)
  • >60,000 Hours
  • Remote Management
  • Wake-on-LAN, PXE Boot, Auto Power-on, Watchdog Timer
  • Expansion Slots
  • 1x Full-size Mini PCIe, 1x M.2 (B-Key)
  • Vibration Resistance
  • 5Grms, 5~500Hz
  • Shock Resistance
  • 50G/11ms
  • Storage
  • Dual SSD (M.2 and 2.5'' SATA), RAID 0/1 Support


Compact industrial computing systems Trade Information

  • Minimum Order Quantity
  • 1 Number
  • Delivery Time
  • 8 Week


About Compact industrial computing systems

Key Features

  • Compact and rugged industrial chassis design
  • Fanless embedded system architecture
  • Support for Intel Core, Atom, Apollo Lake, Elkhart Lake, and Alder Lake-N processors
  • Low power consumption with reliable 24/7 operation
  • Multiple LAN options including Gigabit and 2.5GbE networking
  • Rich I/O connectivity with USB, COM, GPIO, HDMI, and DisplayPort
  • M.2 and Mini PCIe expansion for WiFi, 4G/5G, and storage modules
  • Wide voltage DC power input support
  • Wall mount, DIN rail, and VESA mounting support
  • Industrial temperature operation for harsh environments
  • Compact space-saving design for embedded applications

Common Applications

  • Industrial Automation
  • Edge AI Computing
  • Smart Factory Systems
  • IoT Gateways
  • Machine Vision
  • Digital Signage
  • Transportation Systems
  • Network Security Appliances
  • Kiosk and POS Systems
  • Surveillance and Monitoring
  • Robotics and AGV Applications

Popular Compact System Series

  • HB368F21 Series Fanless Elkhart Lake industrial compact PCs designed for automation and AIoT applications.
  • B420PADN1 Series Compact fanless Box PC powered by Intel Alder Lake-N processors with DDR5 support and industrial I/O.
  • JBC390F841V Series Cableless fanless embedded system with multiple LAN configurations for networking and industrial control.
  • HBJC130F731 Series Compact network appliance system designed for VPN, firewall, UTM, and edge networking applications.
  • HBJC38AF542 Series Industrial fanless embedded PC with multi-display support and expansion capabilities for automation systems.
Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

More Products in Embedded Box PC Category

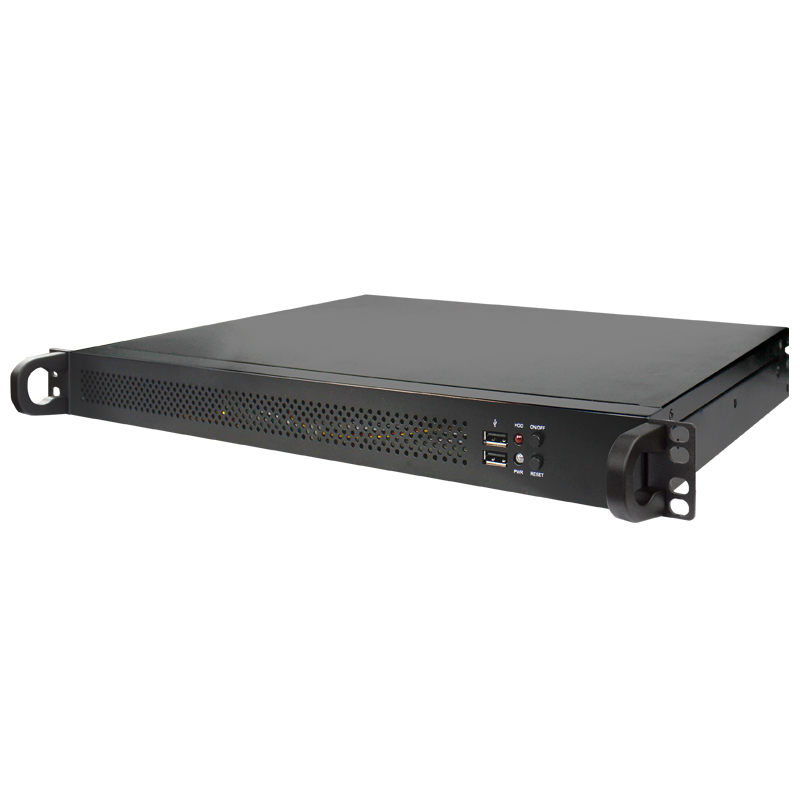

Rackmount System
